SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Module

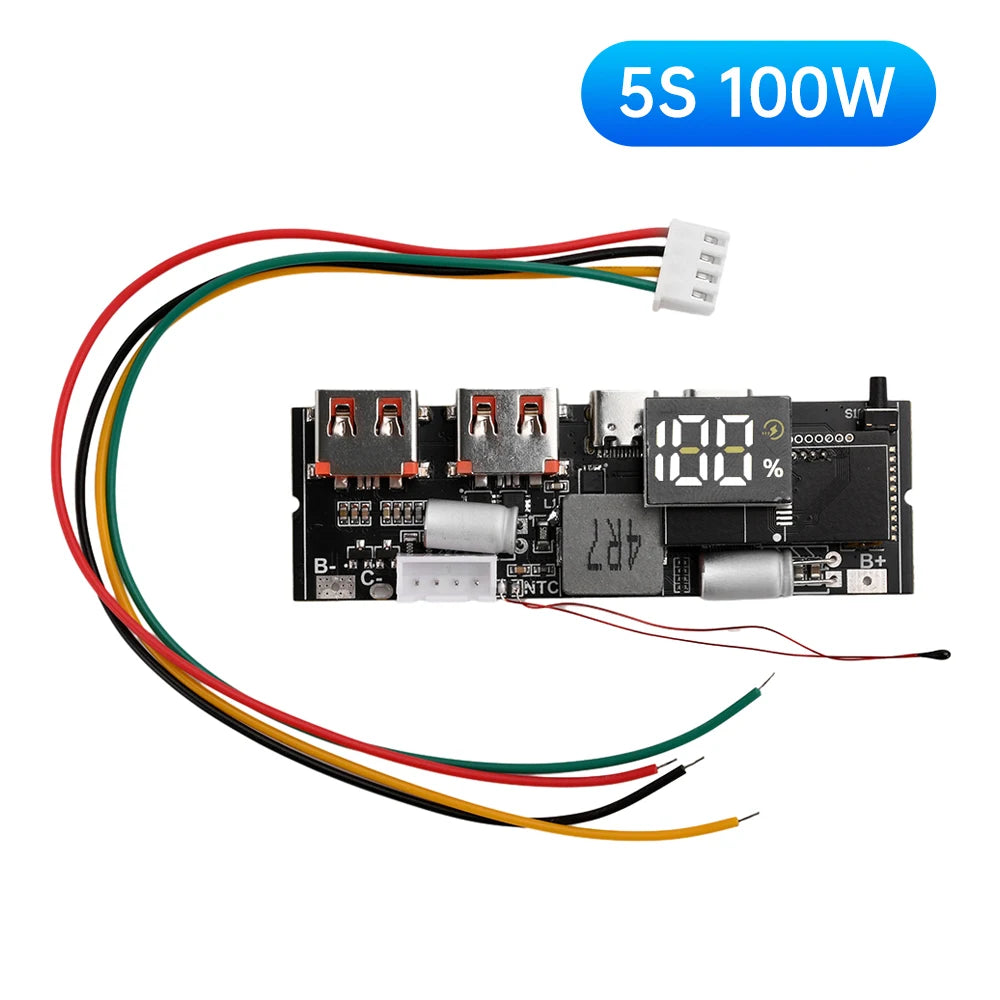

Description:

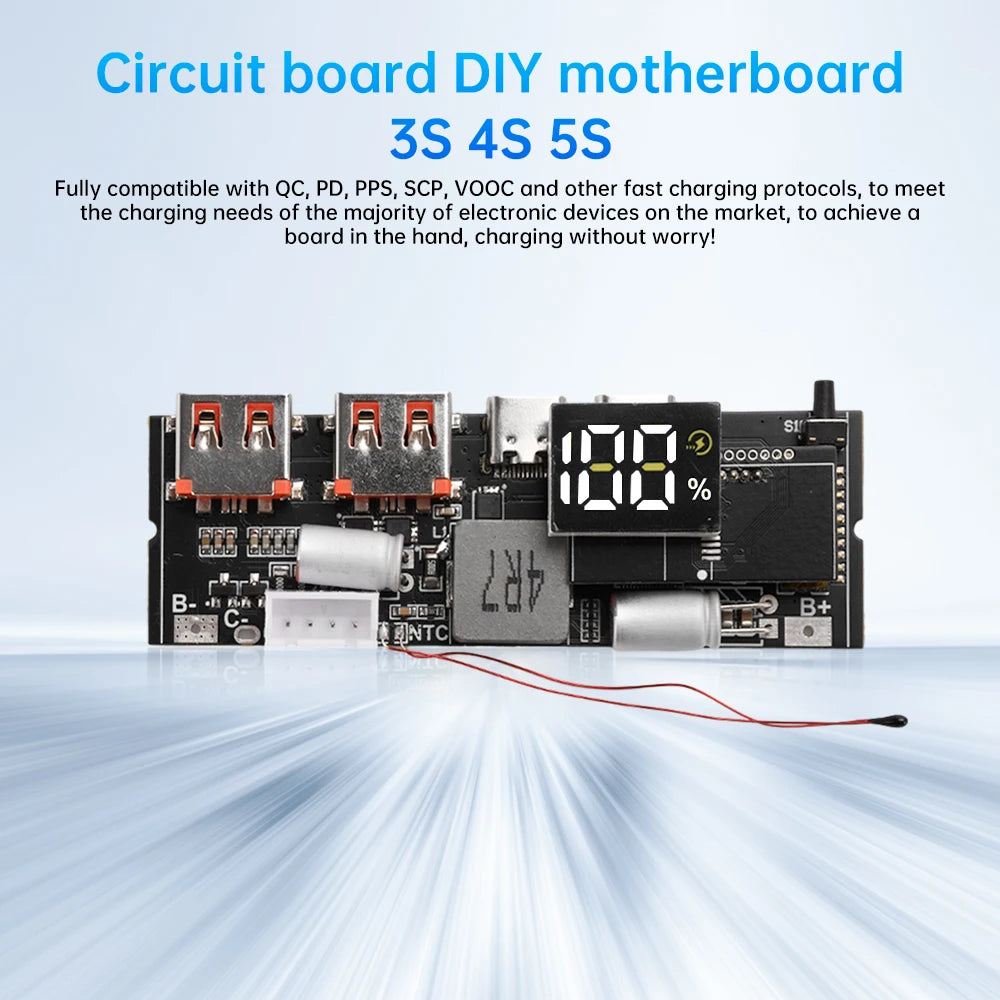

1. Fully compatible with multiple fast charging protocols including QC, PD, PPS, SCP, and VOOC, meeting the charging needs of most electronic devices on the market. One board in hand, worry-free charging.

2. Supports MPPT functionality, enabling charging via solar panels.

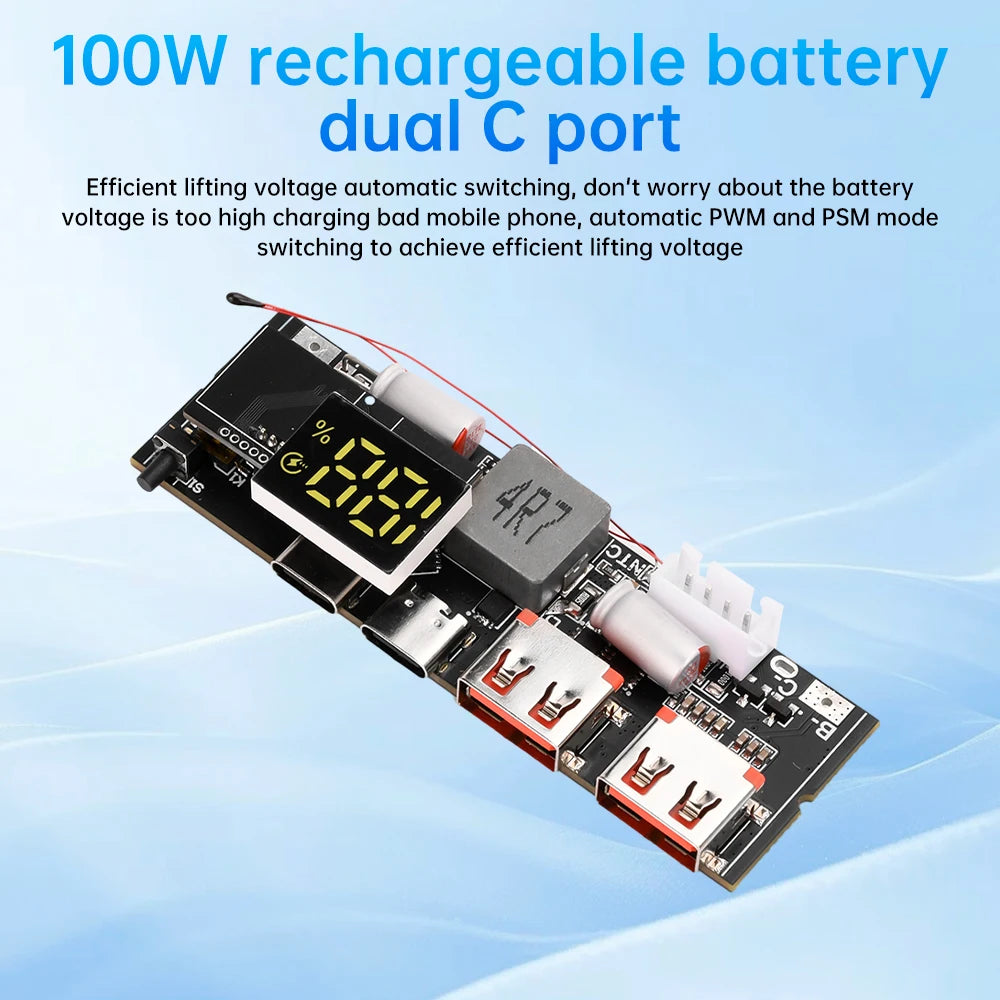

3. Efficient buck-boost automatic switching eliminates concerns about overcharging damage to phones due to high battery voltage. Automatic PWM and PSM mode switching ensures high-efficiency voltage conversion.

4. Incorporates comprehensive protection mechanisms including overcurrent, overvoltage, short-circuit, and overtemperature safeguards for enhanced safety.

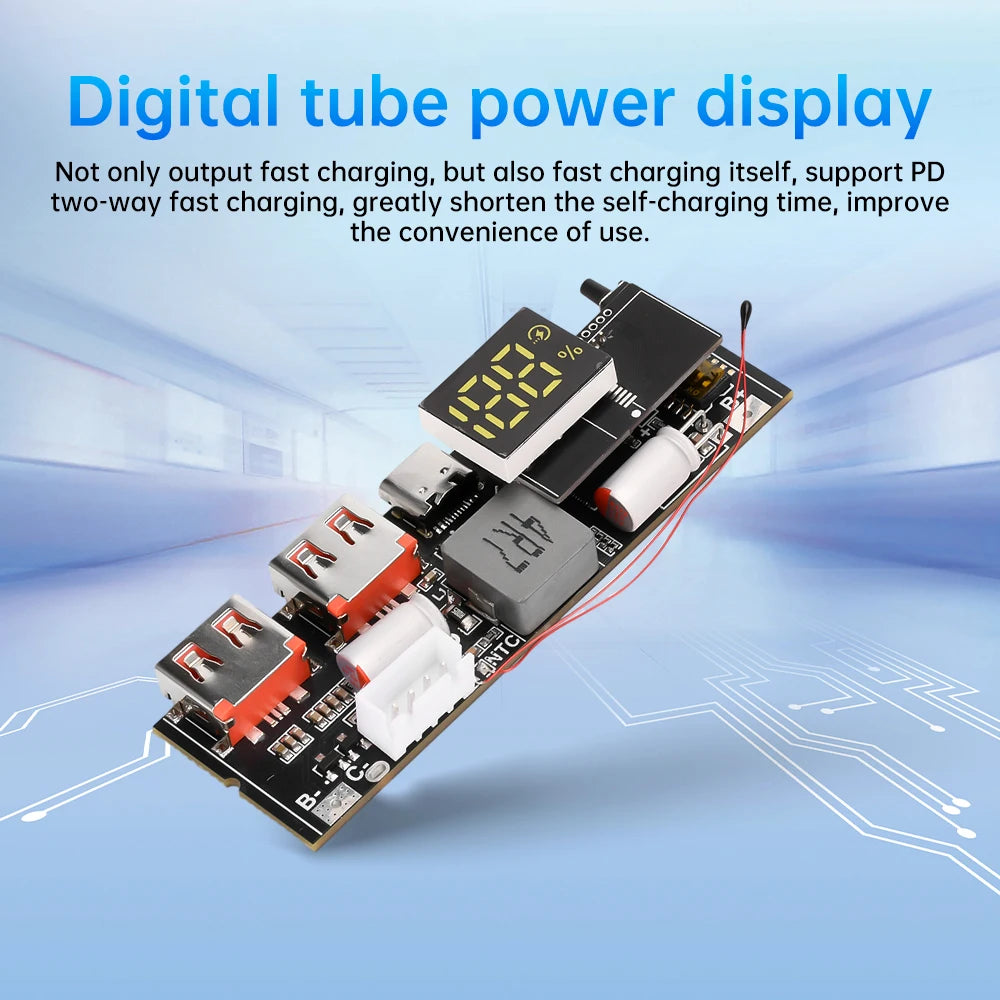

5. Delivers rapid output charging while supporting equally swift PD bidirectional charging for the unit itself, significantly reducing self-charging time and improving convenience.

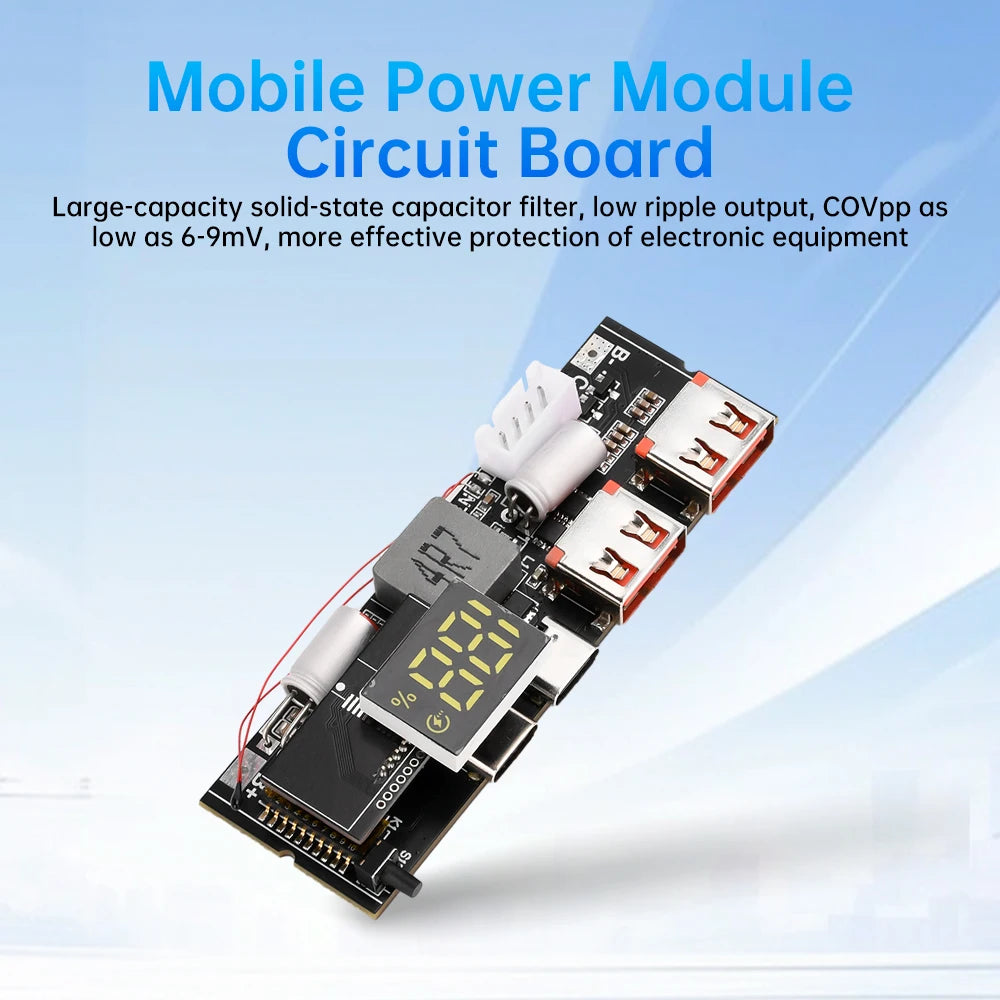

6. Features large-capacity solid-state capacitor filtering with low ripple output. USB-C port Vpp as low as 6-9mV provides superior protection for electronic devices.

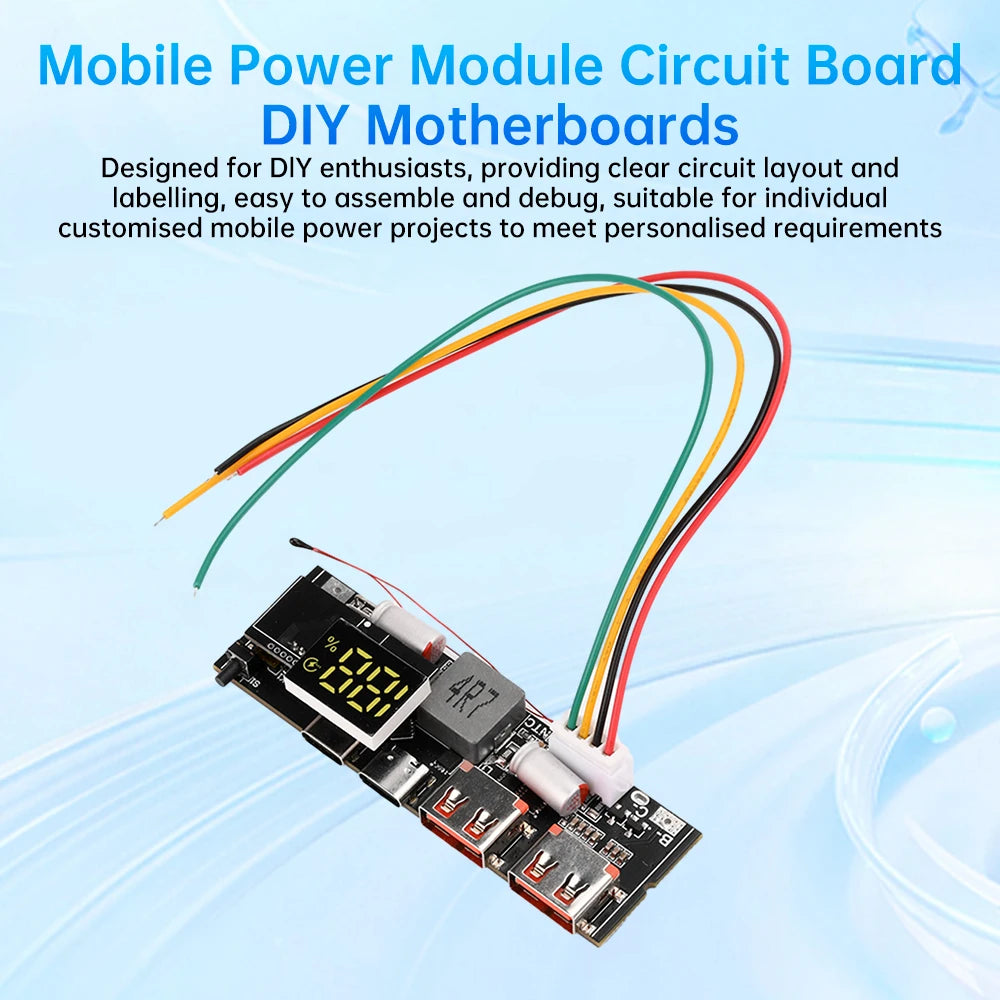

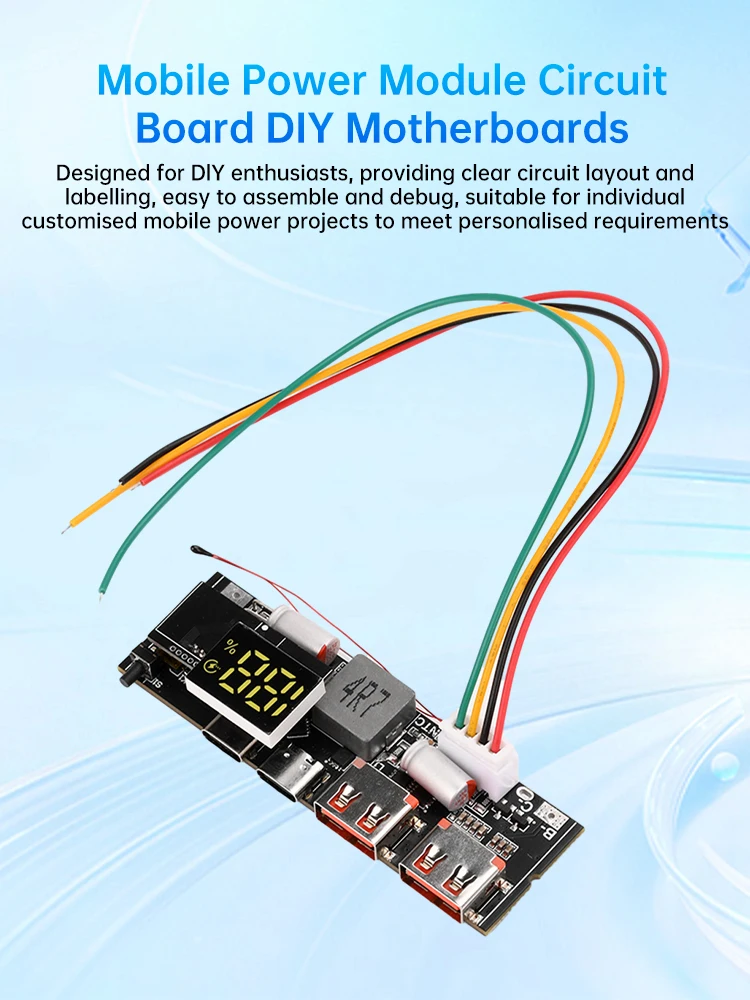

7. Designed for DIY enthusiasts with clear circuit layout and annotations, facilitating easy assembly and debugging. Ideal for personalized power bank projects to meet custom needs

Product Specifications:

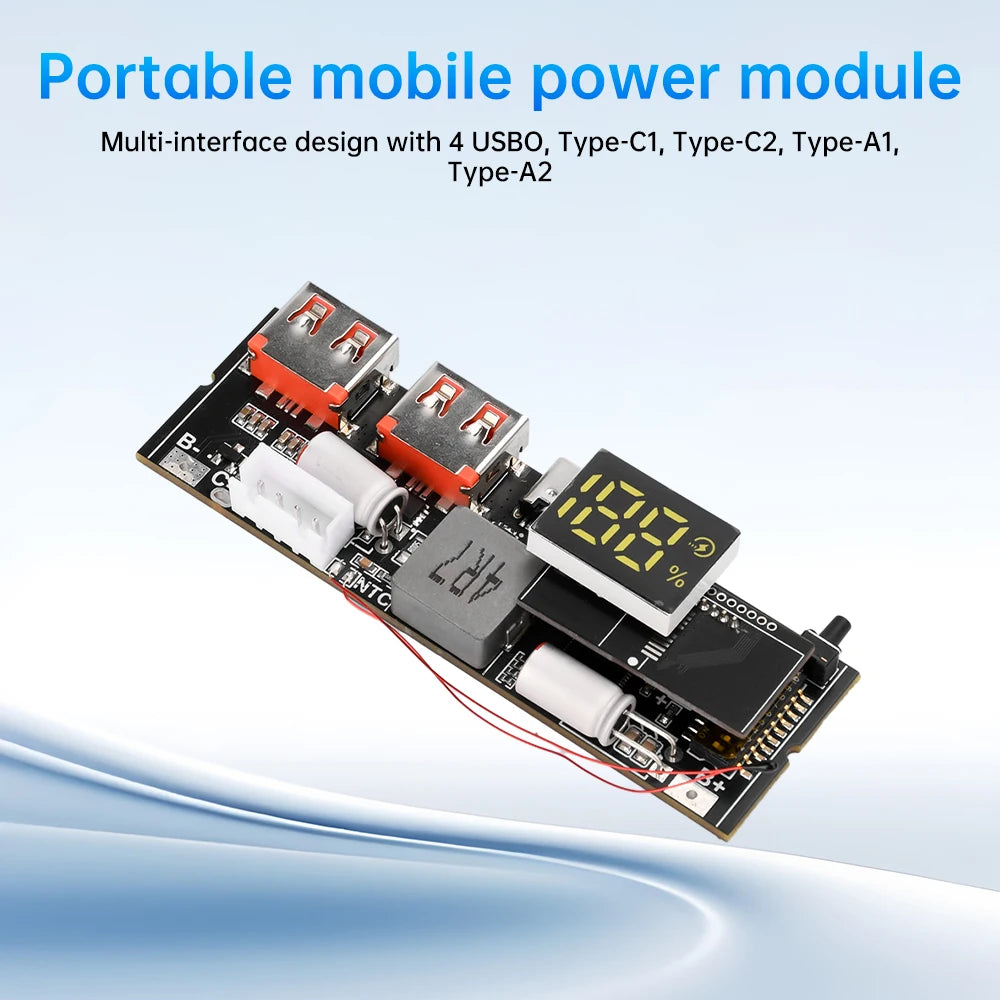

Mainboard features 4 default USB ports: Type-C1, Type-C2, Type-A1, Type-A2

Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols

Supports PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols

Type-A1/Type-A2 supports UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols

Voltage/Current/Power:

PPS/PD3.1: 20V@5A, 3.3V-21V@5A, Maxin100W/Maxout60W

UFCS: 3.4-21V@5A, Maxin100W/Maxout60W

QC2.0: 5V 3A / 9V 3A / 12V 2.8A / 20V 1.5A

QC3.0: 3.6V-20V @ 200mV/step! 5V @ 3A / 9V @ 3A/12V@2.8A/20V @ 1.5A

0C3+: 3.6V-20V@20mV/step! 5V@3A/9V@3A/12V@2.8A/20V@1.5A

AFC: 5V3A/9V3A/12V2.8A

FCP: 5V3A/9V3A/12V2.8A

SCP: OUT 3.3V-12V, IN 5V/9V/10V/12V, supports 10V 4A

PE1.1: 5V/7V/9V/12V

PE2.0: 5V-12V @ 500mV/step

SFCP: 5V/9V/12V

The motherboard must connect the battery according to the diagram. If the battery has its own protection board, simply connect the battery's positive and negative terminals to the motherboard's B+ and C- pads. Otherwise, if the motherboard has integrated protection, wiring must strictly follow the diagram and include the balancing wire. Failure to do so will prevent normal activation and operation!!!

Important Notes:

1: External battery cables must support 10A current. Use copper wire with a minimum cross-sectional area of 1 square mm (1.5 mm² for standard wire). Avoid excessively thick or thin cables—thin wires pose safety risks (due to high battery terminal currents). 16 AWG wire is recommended.

2: The motherboard's built-in protection chip only supports 2-5 series batteries. For 6 or 7 series configurations, batteries must have their own protection boards. The overcurrent protection current of these boards must exceed 15A; otherwise, normal operation is impossible, and severe damage to the motherboard chip may occur.

3: Due to the high current at the battery terminals, thick wires must be soldered to the batteries for testing. Do not use alligator clips attached to the pads to test charging/discharging.

4: Supports OPO Flash Charge and HW Super Fast Charge. Different protocols deliver varying power outputs: 65W/100W refer to PD protocol power, while VOOC is 20W and SCP is 22.5W. Confirm compatibility before purchase. Returns based on “my phone doesn't fast charge” will not be accepted. Soldered units are non-returnable. (Unsupported phones result from proprietary protocols not disclosed to third-party manufacturers.)

5: The battery connected to this mainboard must meet specifications and be wired in series.

Package Contents:

Power Bank Module*1

15cm Equalization Cable*1
